Compensation Quiz (part 2)

(Go back to part 1, or back to the Introduction).

In a continuation of the example from part 1, stained cells were collected with a lower voltage on the PE channel. We all know that changing the voltages on any of the channels changes the necessary compensation. So... examine the figure below:

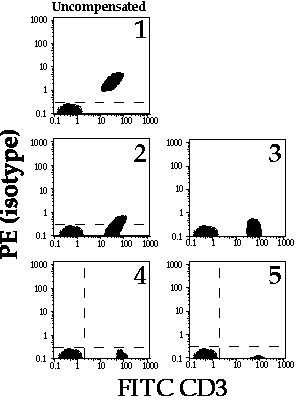

Figure 1B:

Quiz, Question #3: Which panel in this series represents proper compensation?

After you have answered this question, find the answers to the quiz.
